M.2 HAT+ and Raspberry Pi Active Cooler for Raspberry Pi 5

KZ-0061
52Pi Store
$36.54 $42.99( / )

Offer Ends In:

[Description] This kit contains Raspberry Pi M.2 HAT+ and Raspberry Pi Active Cooler for Raspberry Pi 5. The Raspberry Pi M.2 HAT+ M Key enables you to connect M.2 peripherals such as NVMe drives and other PCIe accessories to Raspberry Pi 5’s PCIe interface. The M.2 HAT+ adapter board converts...
Add to Wishlist

Guarantee safe & secure checkout

PayPal

[Description]

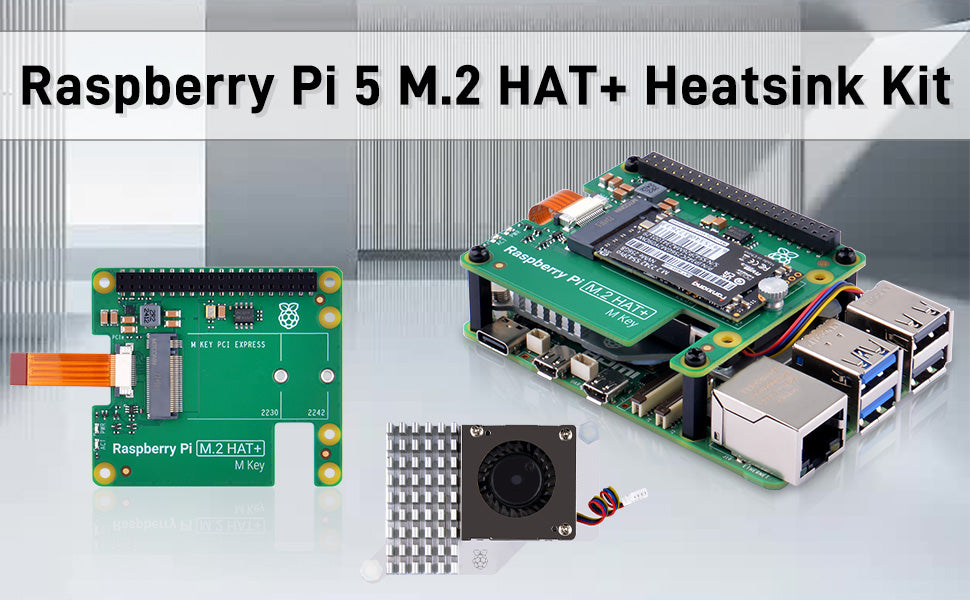

This kit contains Raspberry Pi M.2 HAT+ and Raspberry Pi Active Cooler for Raspberry Pi 5. The Raspberry Pi M.2 HAT+ M Key enables you to connect M.2 peripherals such as NVMe drives and other PCIe accessories to Raspberry Pi 5’s PCIe interface.

The M.2 HAT+ adapter board converts between the PCIe connector on Raspberry Pi 5 and a single M.2 M key edge connector. You can connect any device that uses the 2230 or 2242 form factors. The M.2 HAT+ can supply up to 3A of power.

The M.2 HAT+ uses Raspberry Pi’s HAT+ specification, which allows Raspberry Pi OS to automatically detect the HAT+ and any connected devices.

The included threaded spacers provide ample room to fit the Raspberry Pi Active Cooler beneath an M.2 HAT+.

The M.2 HAT+ is only compatible with the Raspberry Pi Case for Raspberry Pi 5 if you remove the lid and the included fan.

The Raspberry Pi Active Cooler for Raspberry Pi 5 is a dedicated clip-on cooling solution for Raspberry Pi 5. It combines an aluminium heatsink with a temperature-controlled blower fan to keep your Raspberry Pi 5 at a comfortable operating temperature, even under heavy loads.

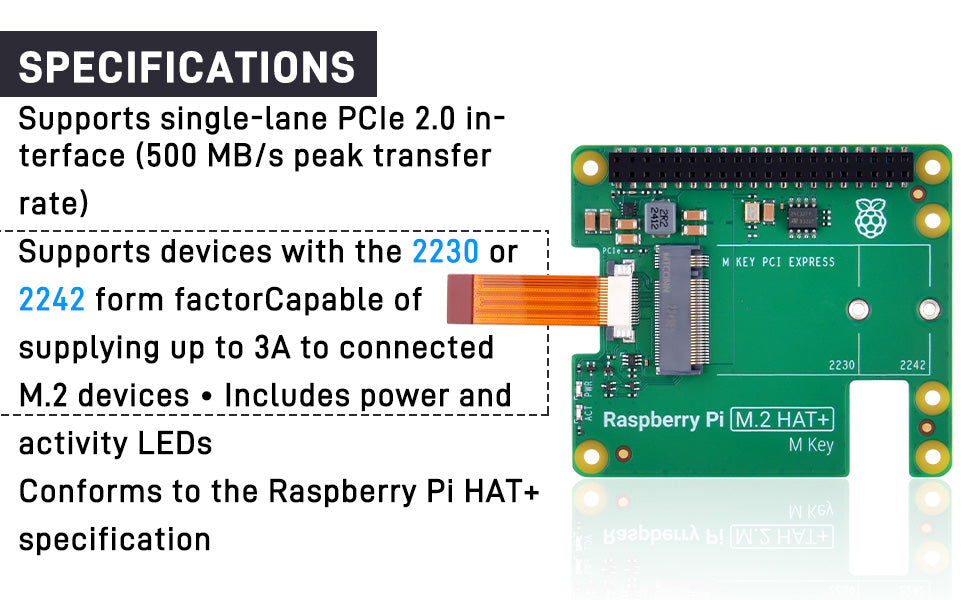

[Features]

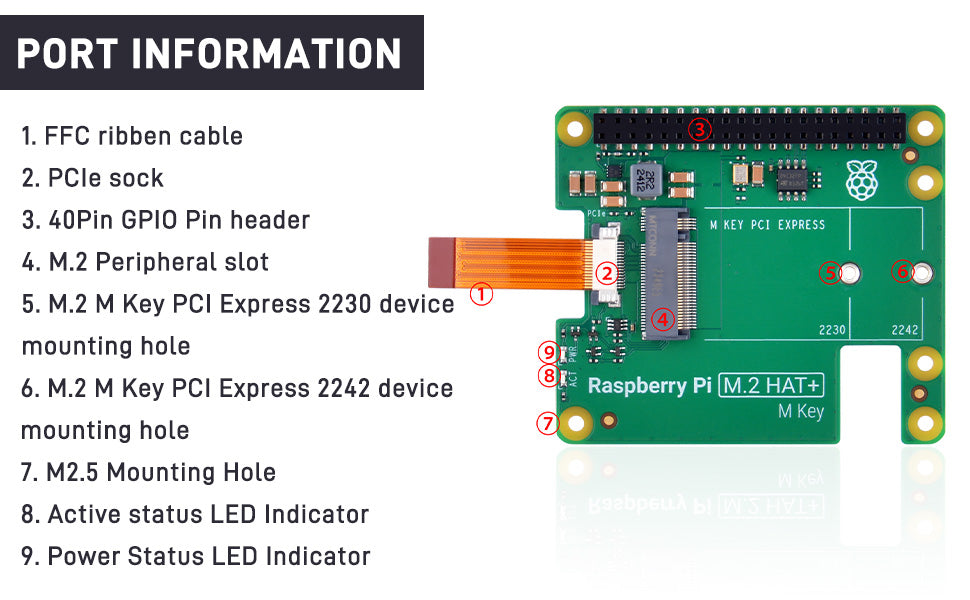

About the Raspberry Pi M.2 HAT+ M Key

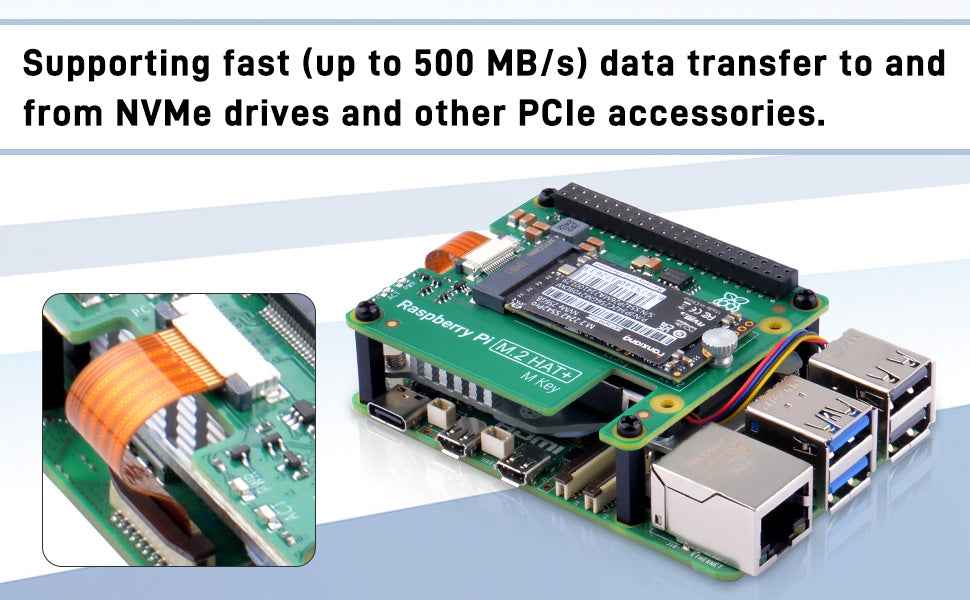

Single-lane PCIe 2.0 interface (500 MB/s peak transfer rate)
Supports devices that use the M.2 M key edge connector
Supports devices with the 2230 or 2242 form factor
Supplies up to 3A to connected M.2 devices
Power and activity LEDs
Conforms to the Raspberry Pi HAT

[Includes]
1 x ribbon cable
4 x 16mm GPIO stacking header
4 x threaded spacers
8 x screws
1 knurled double-flanged drive attachment screw to secure and support the M.2 peripheral
About The Raspberry Pi active cooler for Raspberry Pi 5
Single-piece anodised aluminium heatsink
Heatsink-mounted, temperature-controlled blower fan attached by three screws
Spring-loaded push pins for mounting onto Raspberry Pi 5
Pre-applied thermal pads for heat transfer

[Specifications]
Input voltage: 5V DC supplied via four-pin fan header on Raspberry Pi 5
Fan speed control: Pulse width modulation control with tachometer
Maximum airflow: 1.09 CFM
Maximum fan speed: 8000 RPM +/- 15%
Product material: Anodised aluminium

Vendor:

52Pi Store

SKU:

KZ-0061

Weight:

0.09 kg
