52Pi RP2040 Plus 4MB/8MB with Raspberry Pi Pico Pinout Compatibility Microcontroller Development Board

[Description]

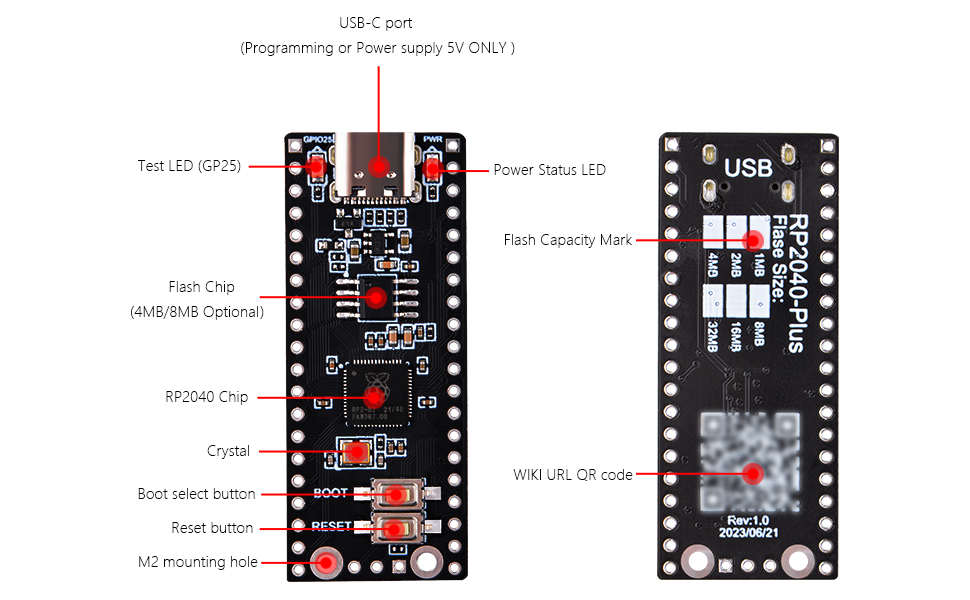

[Features]

• RP2040 Chip: The development board is powered by the RP2040 microcontroller, which is the same chip used in the Raspberry Pi Pico. It offers excellent performance and flexibility for a wide range of applications.

• Pinout Compatibility: The board has the same pinout as the Raspberry Pi Pico, allowing you to seamlessly transition your projects from the Pico to this development board without any modifications.

• Reset Button: An additional reset button is included on the board, providing a convenient way to reset the RP2040 chip without the need to physically disconnect and reconnect the power.

• Boot Select Button: The board features a boot select button, allowing you to easily switch between different boot modes, such as USB mass storage, USB CDC serial, or custom boot modes.

• Test LED:An onboard LED is connected to GP25, providing a visual indicator for testing and debugging purposes. You can control the LED directly through software to provide feedback or monitor specific conditions.

• Flash Size Options: The development board offers two optional flash sizes for storage: 4MB and 8MB. This allows you to choose the capacity that best suits your project's requirements, providing ample space for storing your code, data, and other resources.

• Expansion Options: The board provides additional pins and headers for connecting external components, sensors, or expansion boards. This allows for easy integration of peripherals and customization of your projects.

• Breadboard-Friendly: The compact form factor and breadboard-friendly design make it easy to prototype and experiment with various circuits and components.

• Open-Source: The development board is built with open-source principles in mind, allowing you to access the schematics, design files, and documentation. This enables you to modify and customize the board according to your specific needs.

• Extensive Software Support: The RP2040 chip has a vibrant and active community, ensuring a wealth of software libraries, examples, and resources are available. You can leverage this support to accelerate your development process and bring your ideas to life quickly.

With its enhanced features, pinout compatibility, and flexibility, the RP2040-based Development Board is an excellent choice for both beginners and experienced users looking to build projects based on the Raspberry Pi Pico platform.

[Specifications]

• Chipset: RP2040
• Package Type, QFN56
• PCB type: FR4
• Keys: BOOT / RESET
• Pin: Compatible with official PICO
• Pitch: Compatible with official PICO, 2.54MM PITCH
• Capacity of Flash size: 4MB/8MB/16MB [Optional]
• Flash footprint: std

EP-0175 - 52Pi Wiki

[Package Includes]
