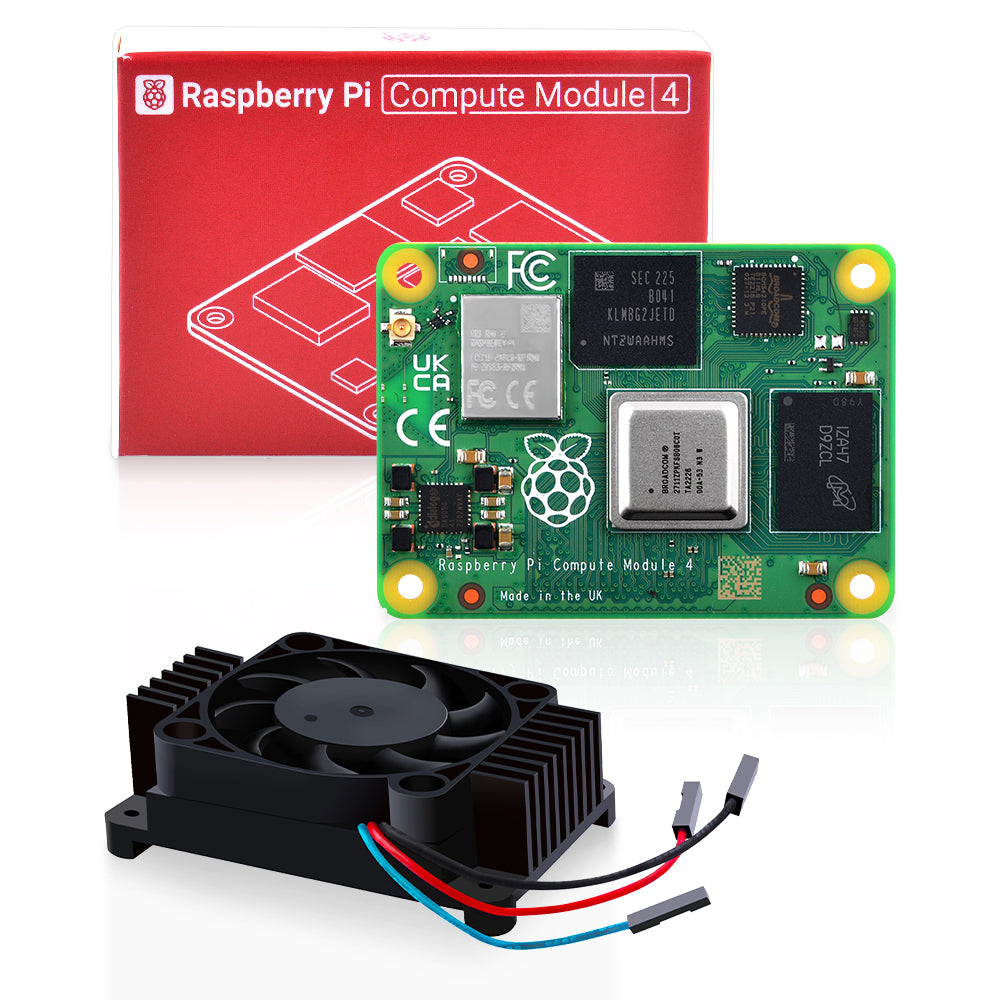

Raspberry Pi Compute Module 4 -8GB RAM 32GB eMMC , 2.4/5.0GHz with Wi-Fi & Bluetooth (CM4108032)
Offer Ends In:
- CM4108032
- CM4108032+Fan
){kind=link}
Guarantee safe & secure checkout
[Product Description]
The power of the Raspberry Pi 4 in a compact form factor for deeply embedded applications!
The Raspberry Pi Compute Module 4 (CM4) harnesses the compute power of the popular Raspberry Pi 4 Model B, bringing it to a smaller form factor suitable for integration into products.
Key features include a high-performance 64-bit quad-core processor, dual-display support at resolutions up to 4K, hardware video decode at up to 4Kp60, up to 8GB of RAM, Gigabit Ethernet, USB 2.0, dual camera interfaces and PCIe Gen 2 x1 interface.
[Specification]

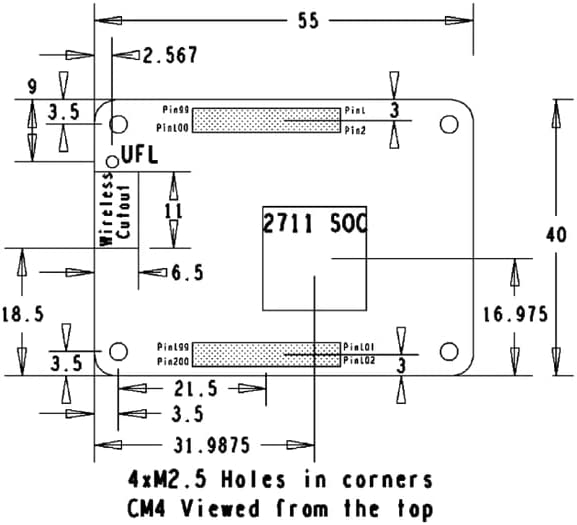

Form factor: 55 mm × 40 mm
Processor: Broadcom BCM2711 quad-core Cortex-A72 (ARM v8) 64-bit SoC @ 1.5GHz
Memory: 8GB LPDDR4
EMMC: 32GB
Connectivity:
2.4GHz and 5.0GHz IEEE 802.11b/g/n/ac wireless, Bluetooth 5.0, BLE with onboard and external antenna options
Onboard Gigabit Ethernet PHY supporting IEEE1588
1 × USB 2.0 interface
PCIe Gen 2 x1 interface
28 GPIO signals
Video:
Dual HDMI interface (up to 4Kp60 supported)
2-lane MIPI DSI display interface
2-lane MIPI CSI camera interface
4-lane MIPI DSI display interface
4-lane MIPI CSI camera interface
Multimedia: H.265 (4Kp60 decode); H.264 (1080p60 decode, 1080p30 encode); OpenGL ES 3.0 graphicsc
Input power: 5V DC
Operating temperature: -20°C to +85°C
Compliance: For a full list of local and regional product approvals, please visit:
raspberrypi.org/documentation/hardware/
raspberrypi/conformity.md
[Package Includes]
Option 1
1 x Raspberry Pi Computer Module 4 (CM4108032)
Option 2
1 x Raspberry Pi Computer Module 4 (CM4108032)
1 x Aluminum Alloy CNC Heat Sink with Fan for Raspberry Pi CM4 Module
1 x Screw Driver
4 x M2.5 Screw
4 x M2.5 Nuts
4 x Thermal Pad
| Type: | |
|---|---|
| Vendor: | |
| Type: |
CM4108032, CM4108032+Fan |
| SKU: |
ER-0040 |
| Weight: |
45 g |
